Working principle

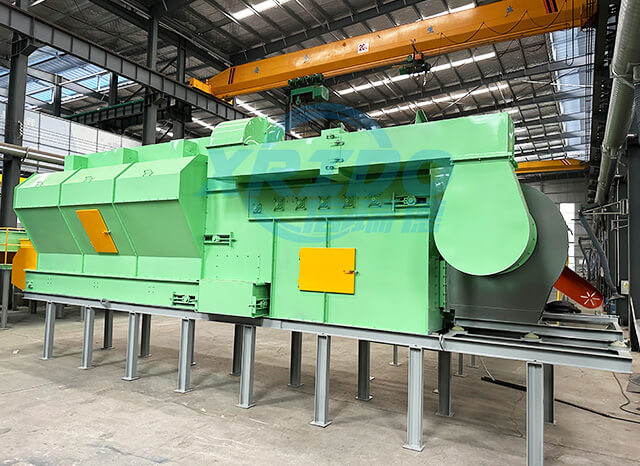

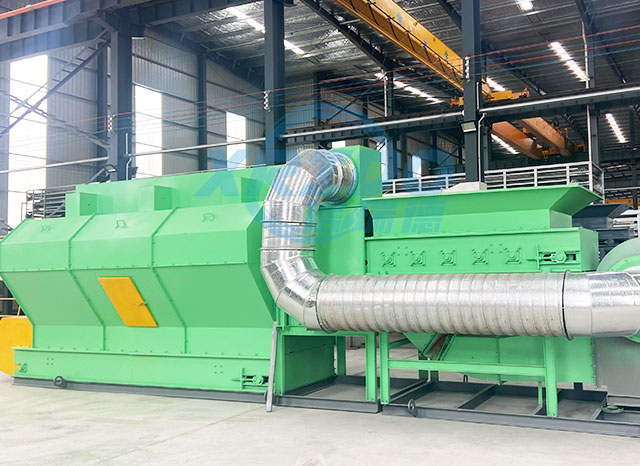

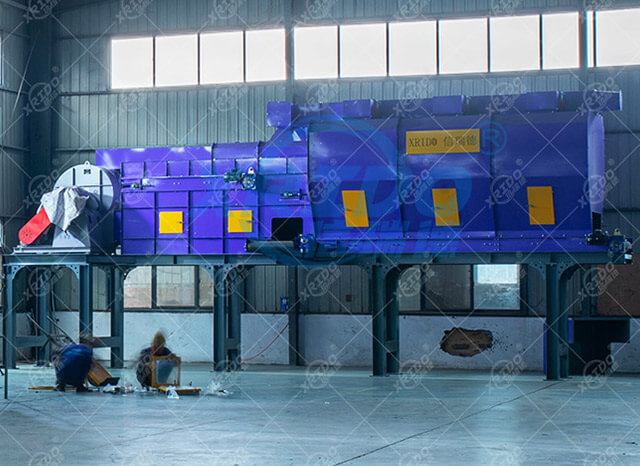

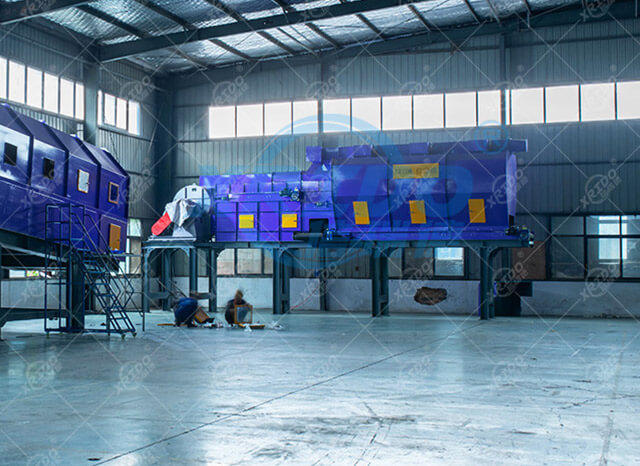

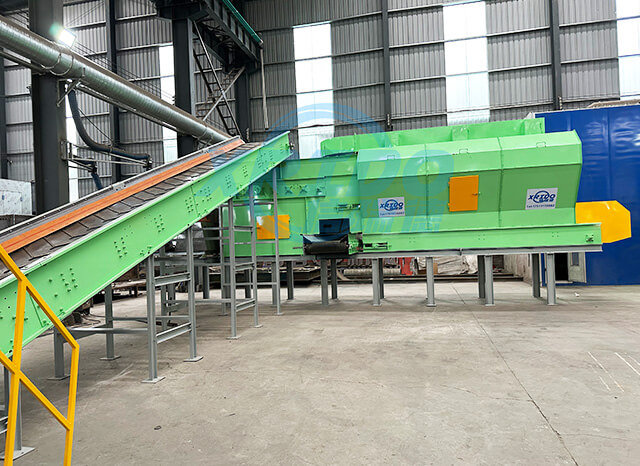

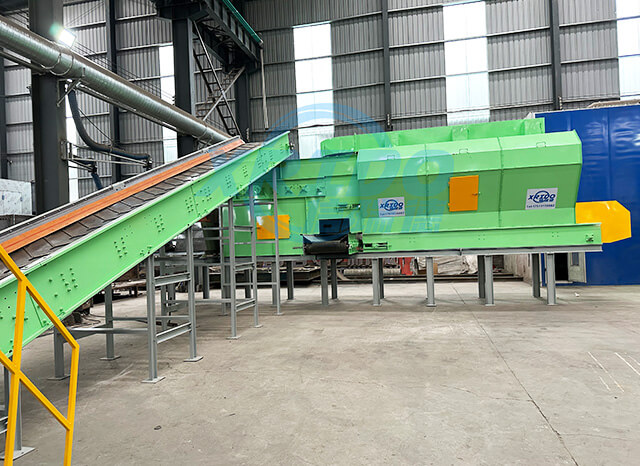

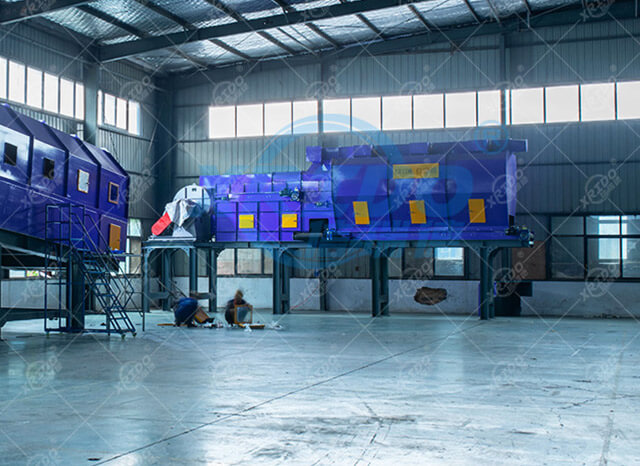

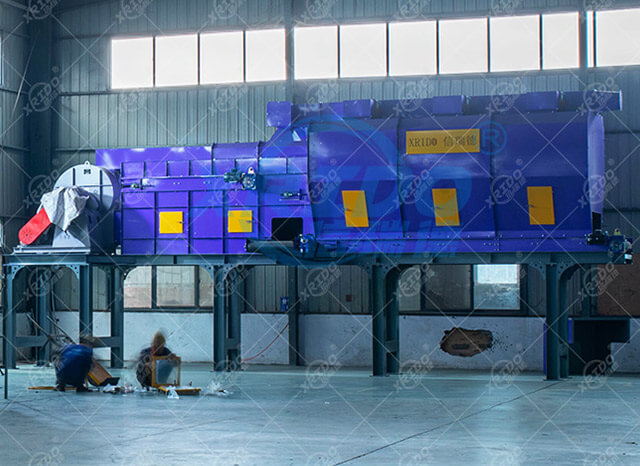

Air separator machine is mainly used to the aerodynamics, the light material, middle material and heavy material will be sorted out under the positive and negative air pressure. light materials will be taken up or horizontally into the settling tank, then discharged by the belt conveyor.
The heavy material is down to the conveyor for the upward air pressure can not bear the weight, they will be discharged by conveyor.
Sorting Material
Light material as；shopping bag, weaving bag, paper chip , heavy material(mixed materials with large differences of density and specific gravity).
Household waste
Construction Waste
Bulky waste
Landfill Stale Waste
Advantage
01
Negative sorting, no dust exhaust in air.
02
Wind speed controlled by VFD to satisfy different material separating, including the wet material.
03
Modular designed, good performance, low maintenance.
04
It takes the double blower and settle to sort the heavy, light, and middle light material.
05
Less spare part, lower time of maintenance.
06
Integrated design of electronic control,plug and play.
Parameters
| Model | Capacity (t/h) | Power (kw) | The Details of Power (kw) |
| RDL-600 | 20 | 26.7 | 7.5+5.5+5.5+3+3+2.2 |
| RDL-800 | 40 | 37 | 11+7.5+7.5+4+4+3 |
| RDL1000 | 60 | 44 | 15+7.5+7.5++5.5+5.5+3 |
| RDL-1200 | 80 | 55.5 | 18.5+11+11+5.5+5.5+4 |
| RDL-1400 | 100 | 59 | 22+11+11+5.5+5.5+4 |
| RDL-1600 | 120 | 79 | 30+15+15+7.5+7.5+4 |
