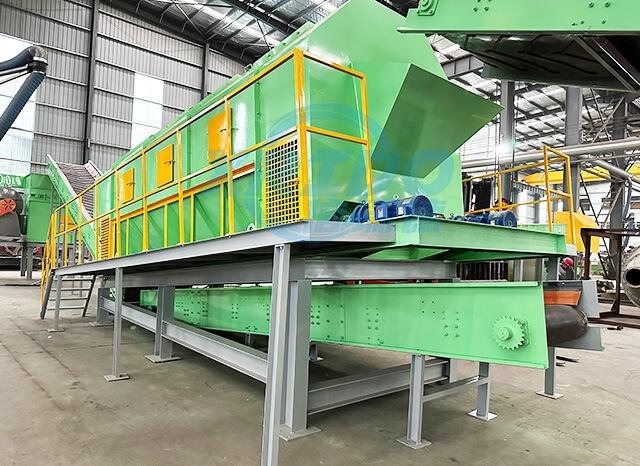

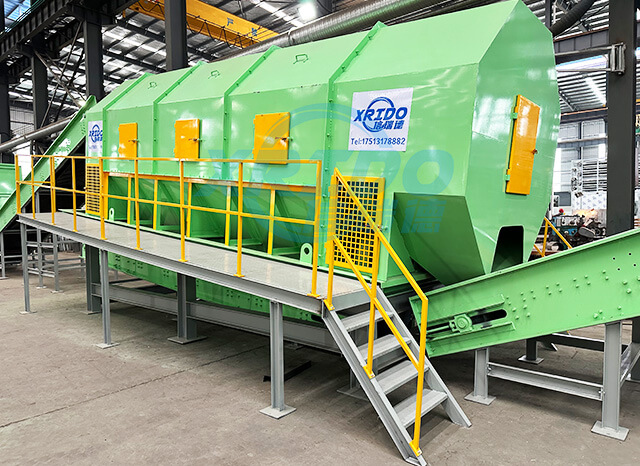

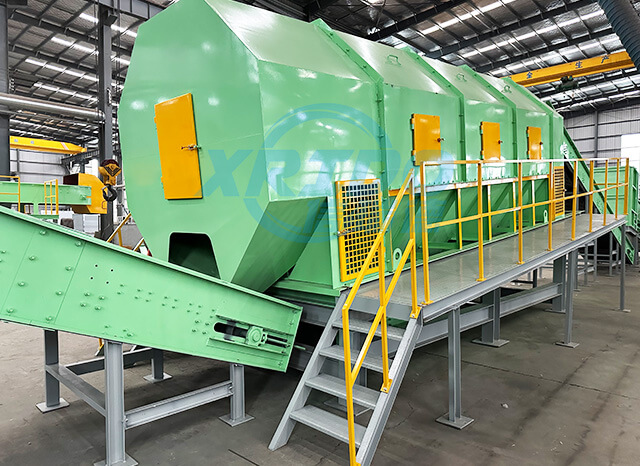

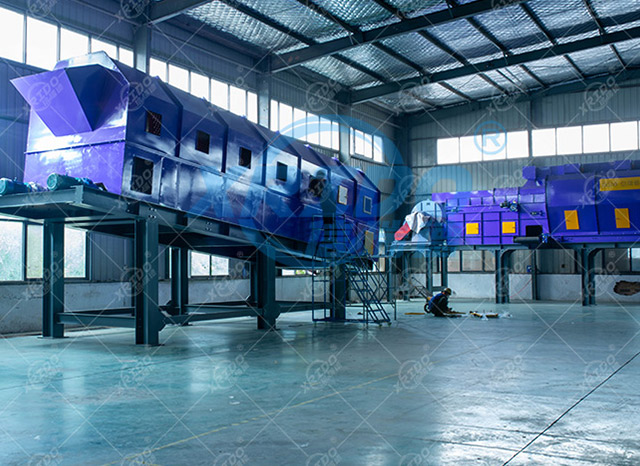

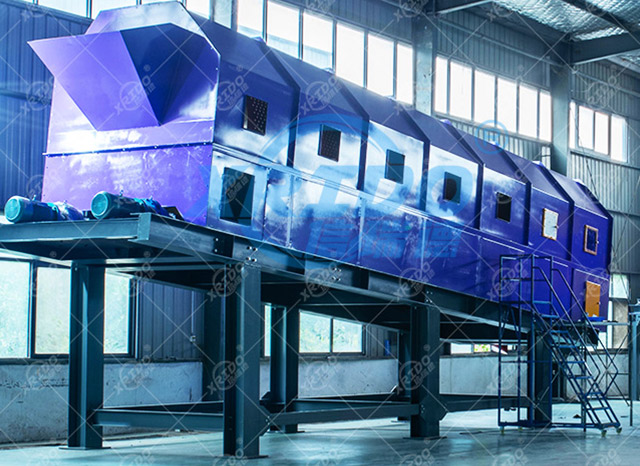

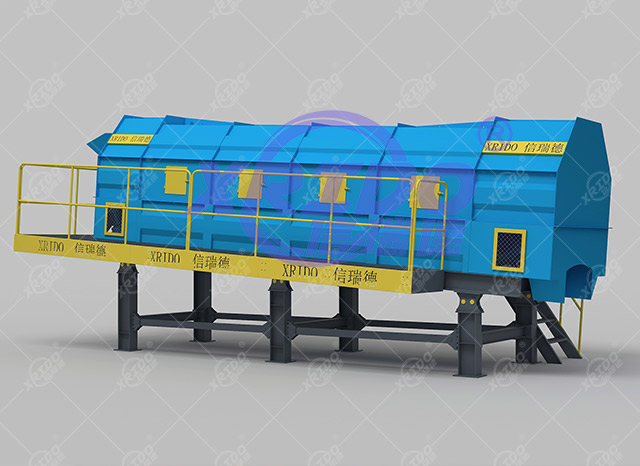

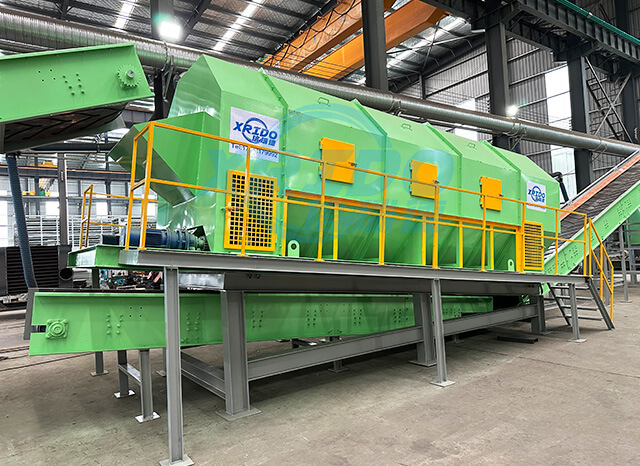

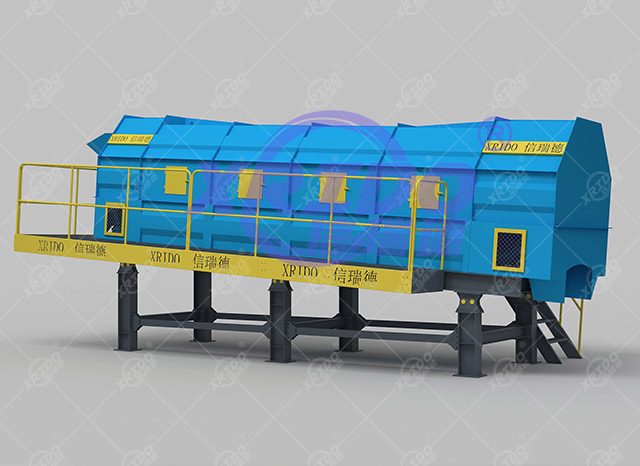

Working principle

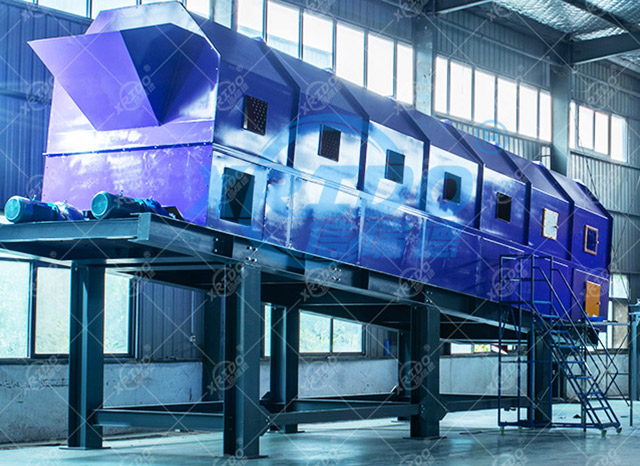

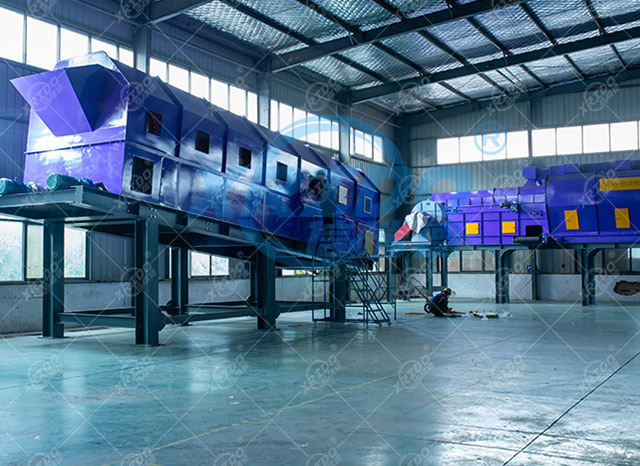

The trommel screen is setting up at the front of MSW sorting machine.
It could separate different size of waste, and separate them into two types or multiple waste as different size of material.
Appliance
Its mainly used to the household waste, construction waste, waste metal, mine industry, power plant, metallurgy etc.
Household waste
Construction Waste
Bulky waste
Landfill Stale Waste
Advantage
01
Higher rate of efficiency and capacity
02
Simple flow, its convenient to do installment. Maintenance and operation
03
Less area, lower investment, stable performance
04
Lower power consumption, there are setting the automatic clean device to avoid stuck of the screen hole.
05
Strong adaptability to materials, viscosity, wet, messy material are all works.
06
The bag breaker is optional of waste sorting.
Parameters
| Dia.Of screen(mm) | Length (m) | Speed (r/min) | Capacity(t/h) | Bag break rate (%) | Rate of screening (%) | Power(kw) |
| RDG1200 | 4-8 | 0-20 | ≥20 | 60-90 | 70-90 | 4-5.5 |
| RDG1500 | 5-9 | 0-17 | ≥40 | 60-90 | 70-90 | 5.5-7.5 |
| RDG1800 | 6-10 | 0-14 | ≥50 | 60-90 | 70-90 | 7.5-11 |
| RDG2000 | 8-11 | 0-13 | ≥60 | 60-90 | 70-90 | 11-15 |
| RDG2200 | 9-12 | 0-12 | ≥70 | 60-90 | 70-90 | 15-18.5 |
| RDG2500 | 10-15 | 0-11 | ≥80 | 60-90 | 70-90 | 18.5-22 |
| RDG3000 | 10-15 | 0-11 | ≥100 | 60-90 | 70-90 | 22-30 |
