Household Waste Sorting Plant, Waste Sorting Machine

Garbage sorting and recycling system

The garbage sorting production line is through a series of processes such as conveyor, winnowing machine, drum screen, magnetic vortex sorting machine, winnowing, dust collection and gas treatment. Separate copper, aluminum and non-ferrous metals, iron and magnetic materials, plastic, rubber, stainless steel, heavy sand and gravel, organic matter and sundries, and large waste in the original materials. It is mainly used for the extraction and sorting of recyclable materials such as urban domestic waste, industrial waste, construction waste, decoration waste, and stale waste.

The purity can reach about 98%. The process is fully automated from feeding to sorting, with a daily processing capacity of 300-500 tons, requiring only a small amount of manual operation. The whole set of equipment does not need fire, chemical raw materials, and water. It is an environmentally friendly recycling project that is advocated mainly, and it is a new technological process that replaces the original pollution methods such as manual, fire, water selection or landfill.

Sorting Machine Display：

Air separator

Ai sorting machine

trommel screen

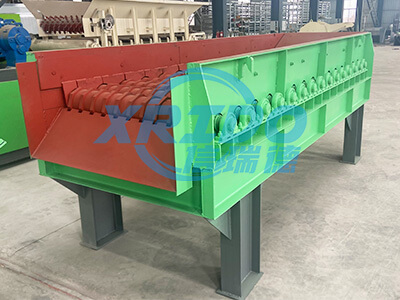

star screen

Materials suitable for the sorting and recycling system:

Its mainly used to the household waste, industrial waste, construction waste, decoration waste, and stale waste etc.

Household waste

Construction Waste

Landfill Stale Waste

Decoration Waste

Municipal solid waste

Industrial waste

Solid waste

Demestic waste

Video

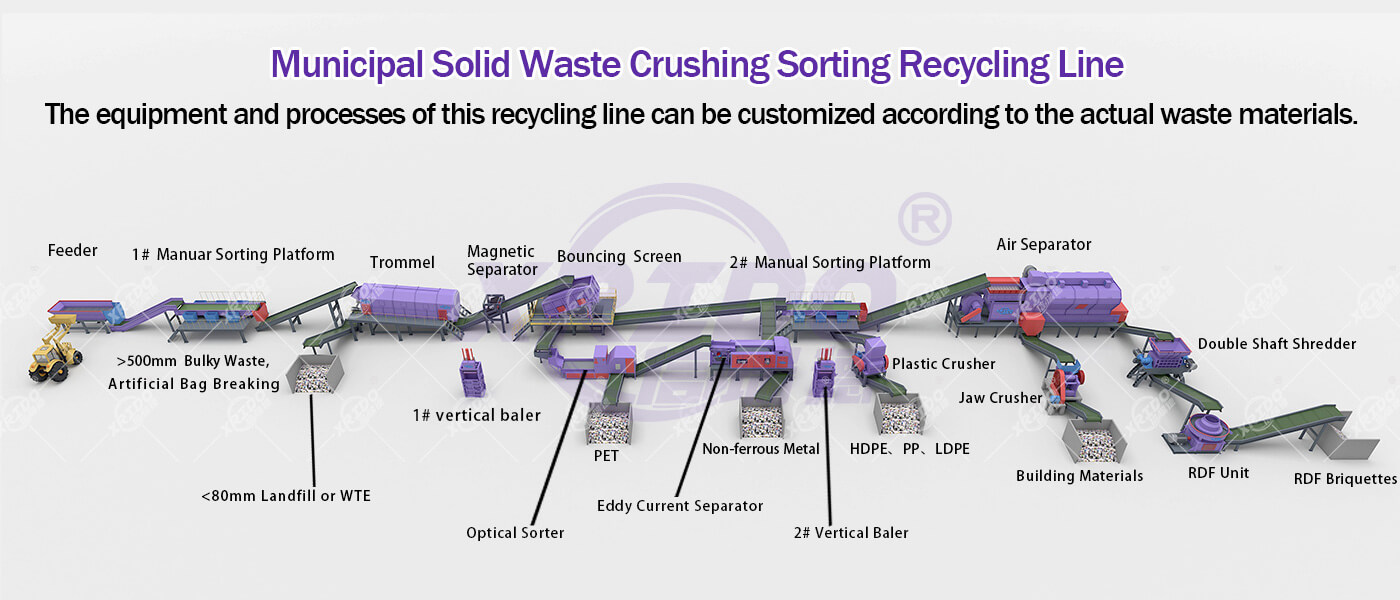

Waste Sorting and Recycling Line

The production line can be customized based on actual materials and processing volume.

Email：[email protected]

Wechat / WhatsApp: 86 1751317882

Our waste sorting and recycling system

The waste sorting and recycling system can be customized according to your actual situation and materials.

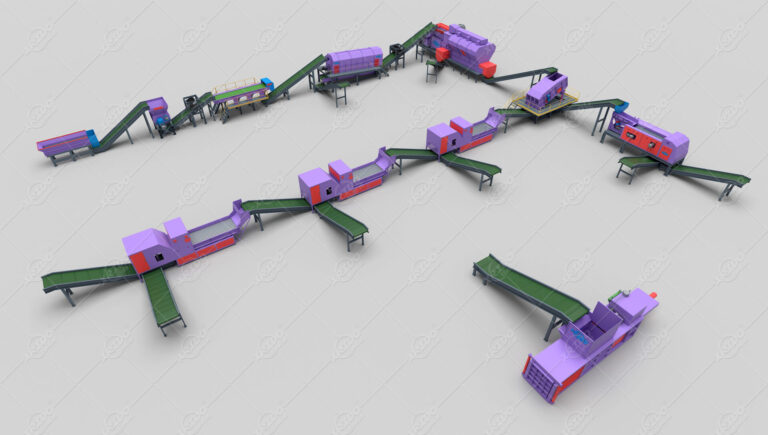

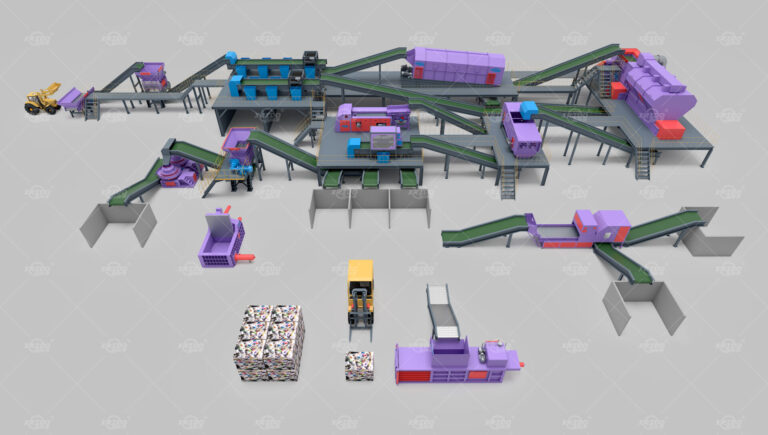

Waste Sorting Plant

Landfill Stale Waste Sorting Plant

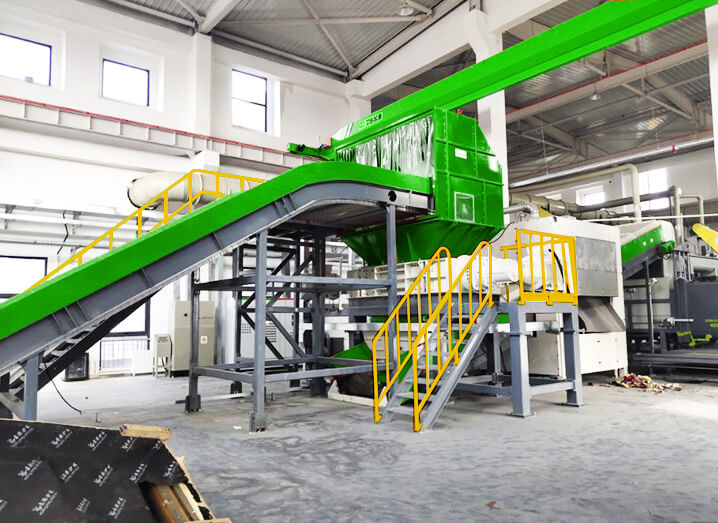

Bulky waste Sorting Plant

Construction And Decoration Waste Sorting Machine

Introduction of waste sorting and recycling system

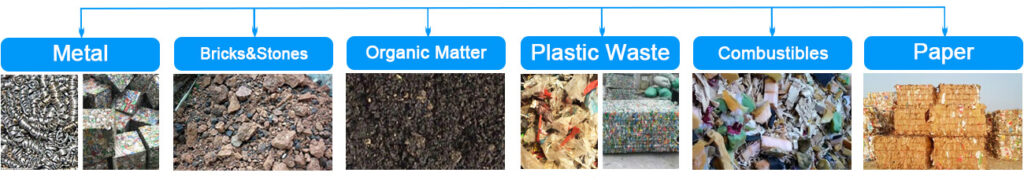

Fully enclosed, mechanized garbage sorting equipment, also known as garbage sorting equipment and garbage sorting equipment, is mainly used for sorting garbage. Garbage can be sorted into six categories:

Inorganic substances (such as bricks and tiles, etc.), can be used to make building materials after being selected;

Non-recyclable combustibles enter the pyrolysis gasification system to provide heat;

Organic matter, sandy soil, nutrient soil or organic fertilizer after natural fermentation;

Plastics, made of wood-plastic panels or plastic particles,

Ferromagnetic materials are mainly recycled.

Garbage sorting equipment is composed of garbage storage silos, hoisting and loading, crushing, screening, winnowing, specific gravity sorting, magnetic separation, transfer and other links. It sorts various garbage into inorganic, organic, combustible, plastic, Different types of recycled materials such as ferromagnetic materials are sent to the next system for harmless comprehensive treatment, and resource cross-reuse.

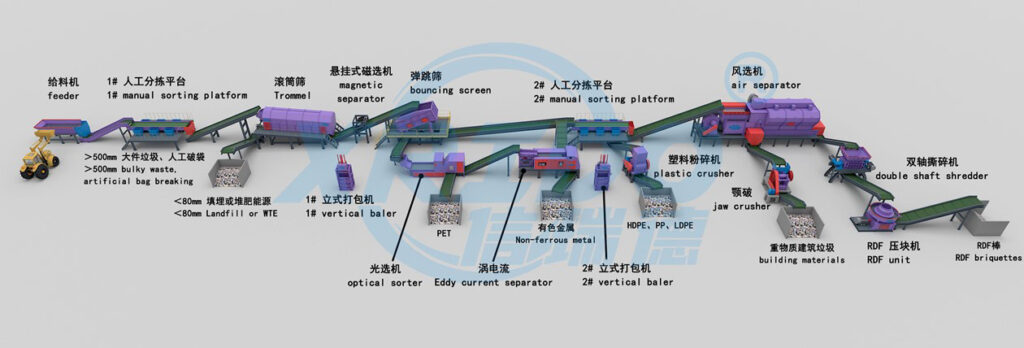

Garbage sorting and recycling equipment workflow

Step 1

Garbage enters the manual sorting platform, and large objects are manually sorted out, such as large furniture, clothes, bottles, large pieces of glass, and a small amount of construction waste. On the one hand, the utilization rate of waste is expanded, and on the other hand, the piles of subsequent steps are reduced. After primary crushing, enter the next step of sorting.

Step 2

After completing the above steps, the garbage entering the screening system is divided into two sizes. One is for larger objects such as plastics and shoes, and the other is for smaller objects to enter the eddy current separator to obtain metals, and the remaining materials are synthesized into fertilizer or nutrient soil.

Step 3

The oversized objects that have been screened will be separated again by gravity separation (wind separation equipment), and a part of lighter objects (mostly plastic) and other heavier objects will be obtained. The heavy material goes into the vortex separator to get metal and organic waste, and the lighter material will be baled by the baler.

Technical Parameters

Model	XRDEP-100D	XRDEP-200D	XRDEP-400D
Raw materials	Domestic Waste, Urban trash , Landfill Stale Waste, Municipal Solid Waste, Construction and Decoration Waste, Scrap Metal, Industrial Waste, Plastic Waste, Solid Waste
Capacity	100T/D	200T/D	400T/D
Power	149KW	224.7KW	279KW
Area	2400㎡	2800㎡	3000㎡
Working time	20 hours	20 hours	20 hours

Waste Sorting and Recycling Machine
